TECHINCAL LITERATURE
HOT MELT ADHESIVE UCH1609
Specifications:
Items | Specs |

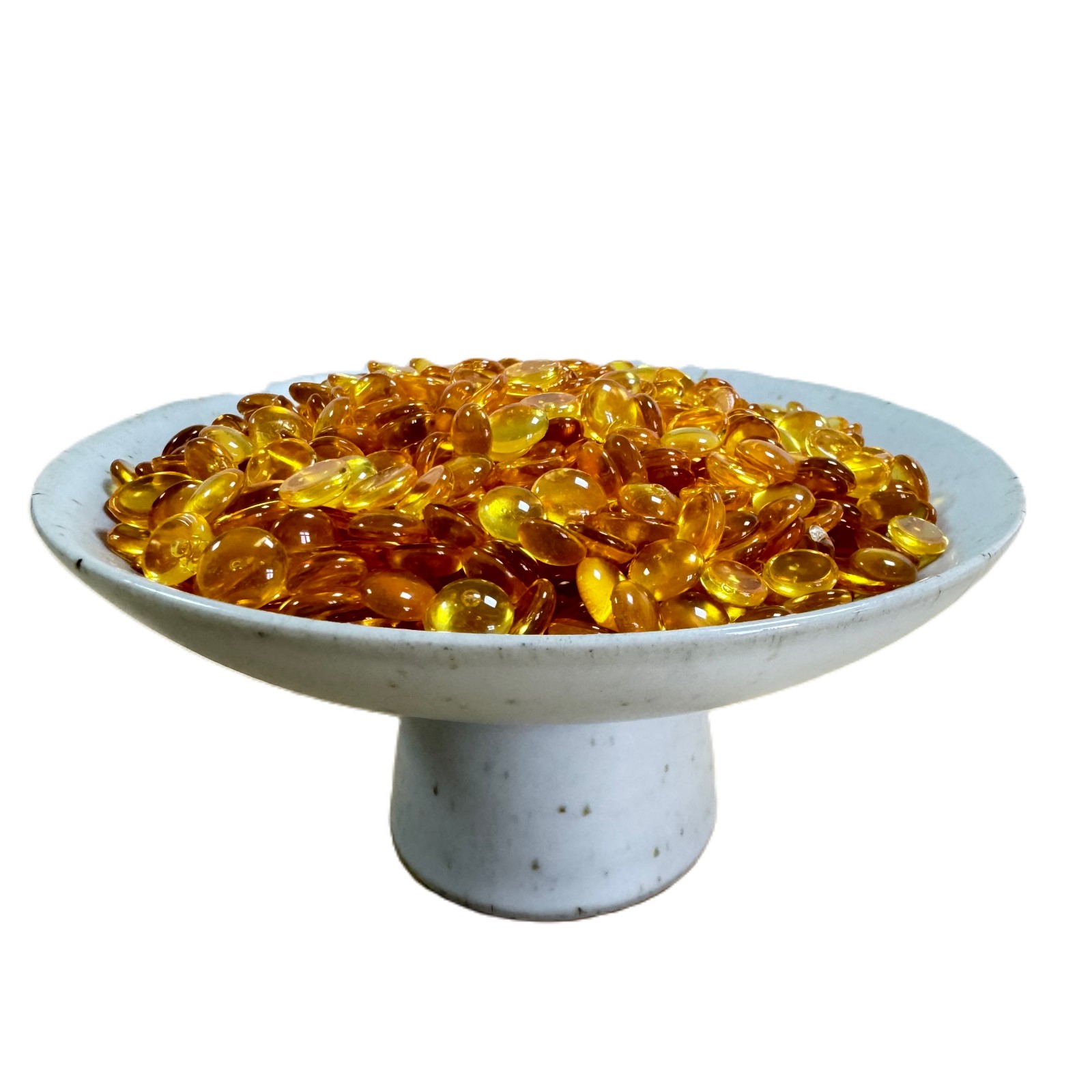

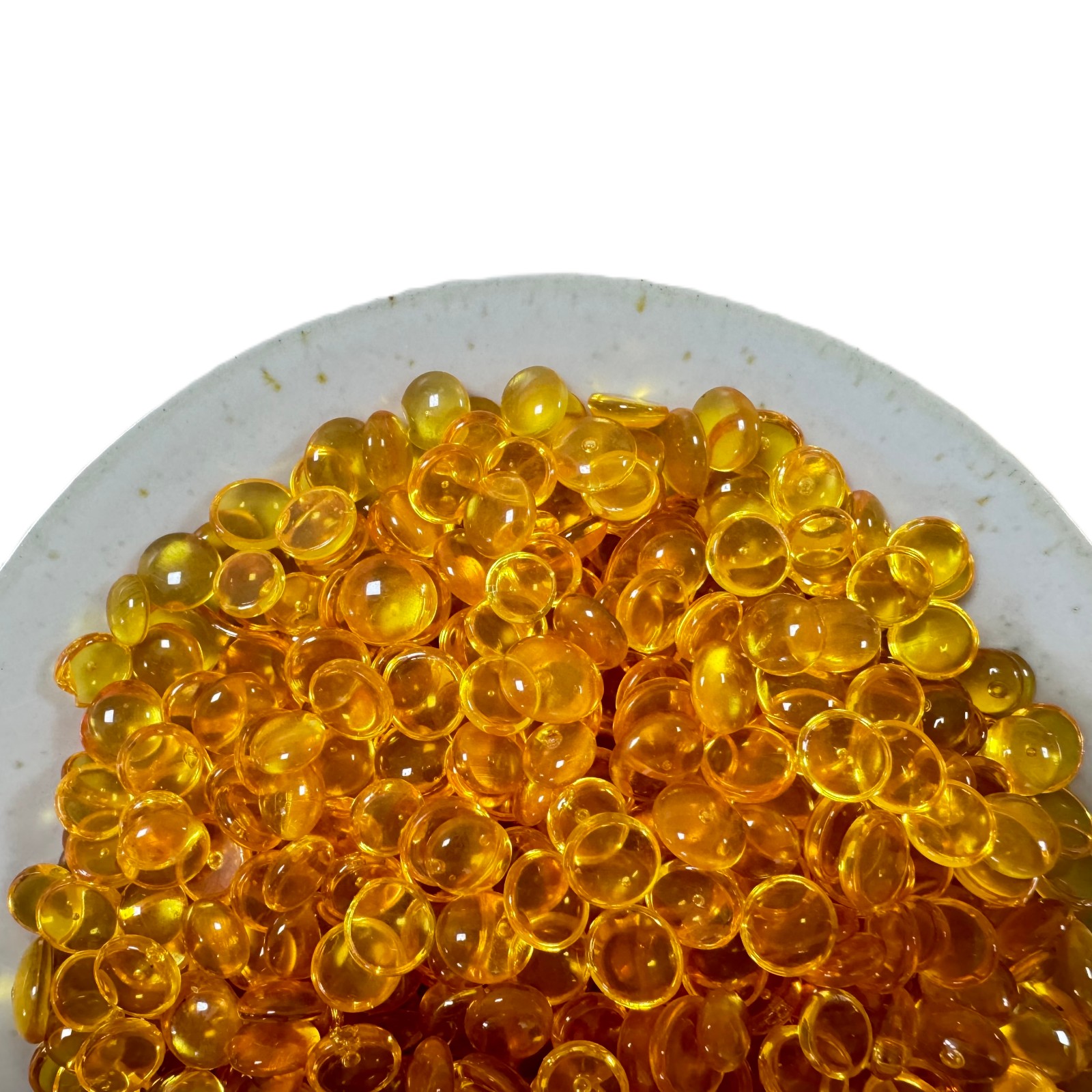

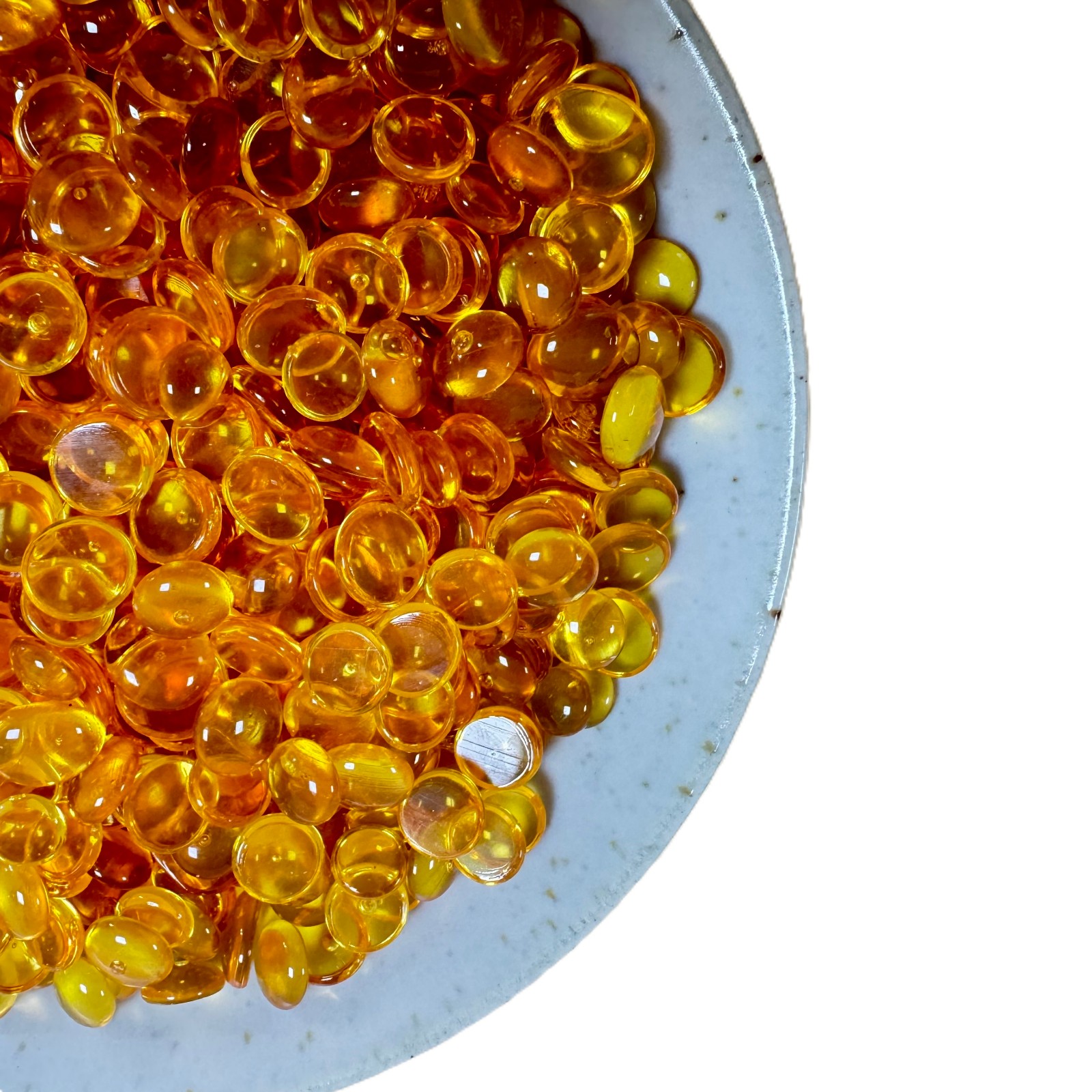

Aspect | Yellow Granular |
Temperature resistance | -40℃ to 100℃ |
Density | 0.98 g/cm3 |
Softening Point | 160+-5℃ |
Viscosity@210℃ | 3000-5500 mPa.s |
Glass transition temperature | -40℃ |
Shore hardness | 25-30D |
Application temperature | 180-230℃ |
Type | PA based |

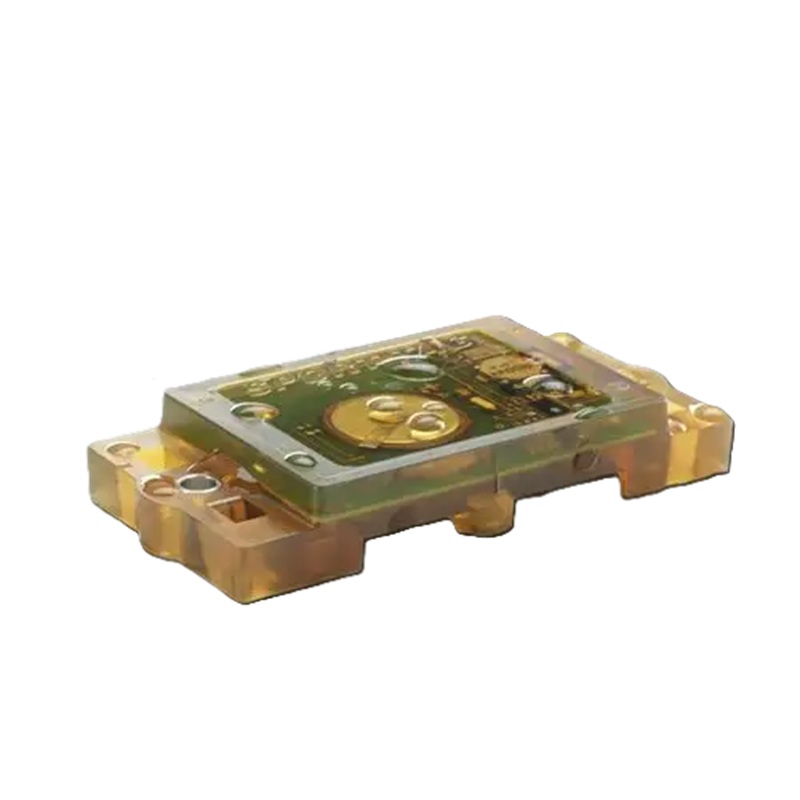

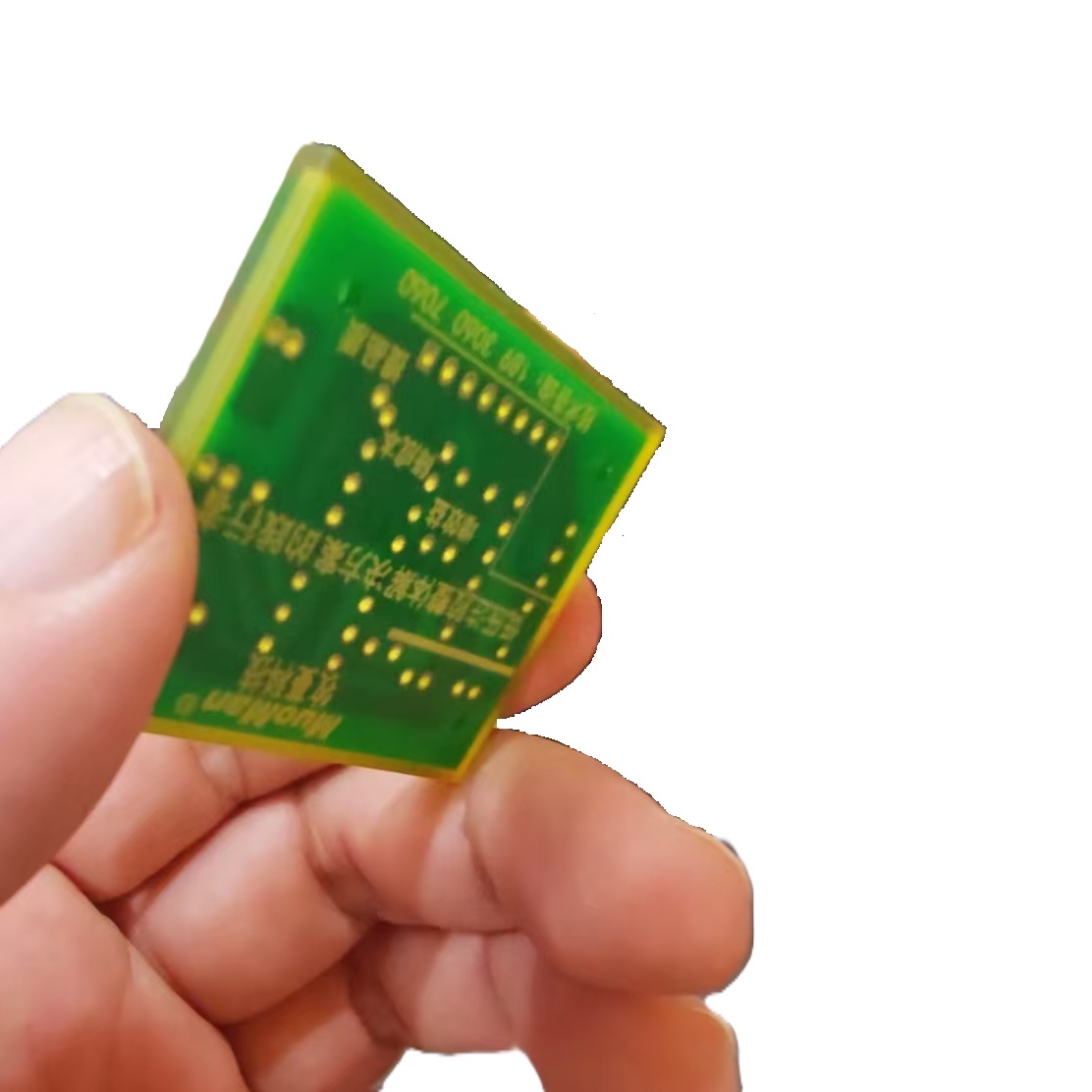

Use: Electronics packages
Packing: 25Kgs in Kraft bags.
Storage: Indoor, Avoid direct sunlight and moisture.
Shelf Time: 2 years
Application: Please dry it at 85 ℃ in vacuum for 2 hours before use.
