TECHINCAL LITERATURE
HOT MELT ADHESIVE UCH9249
Specifications:
Items | Specs |

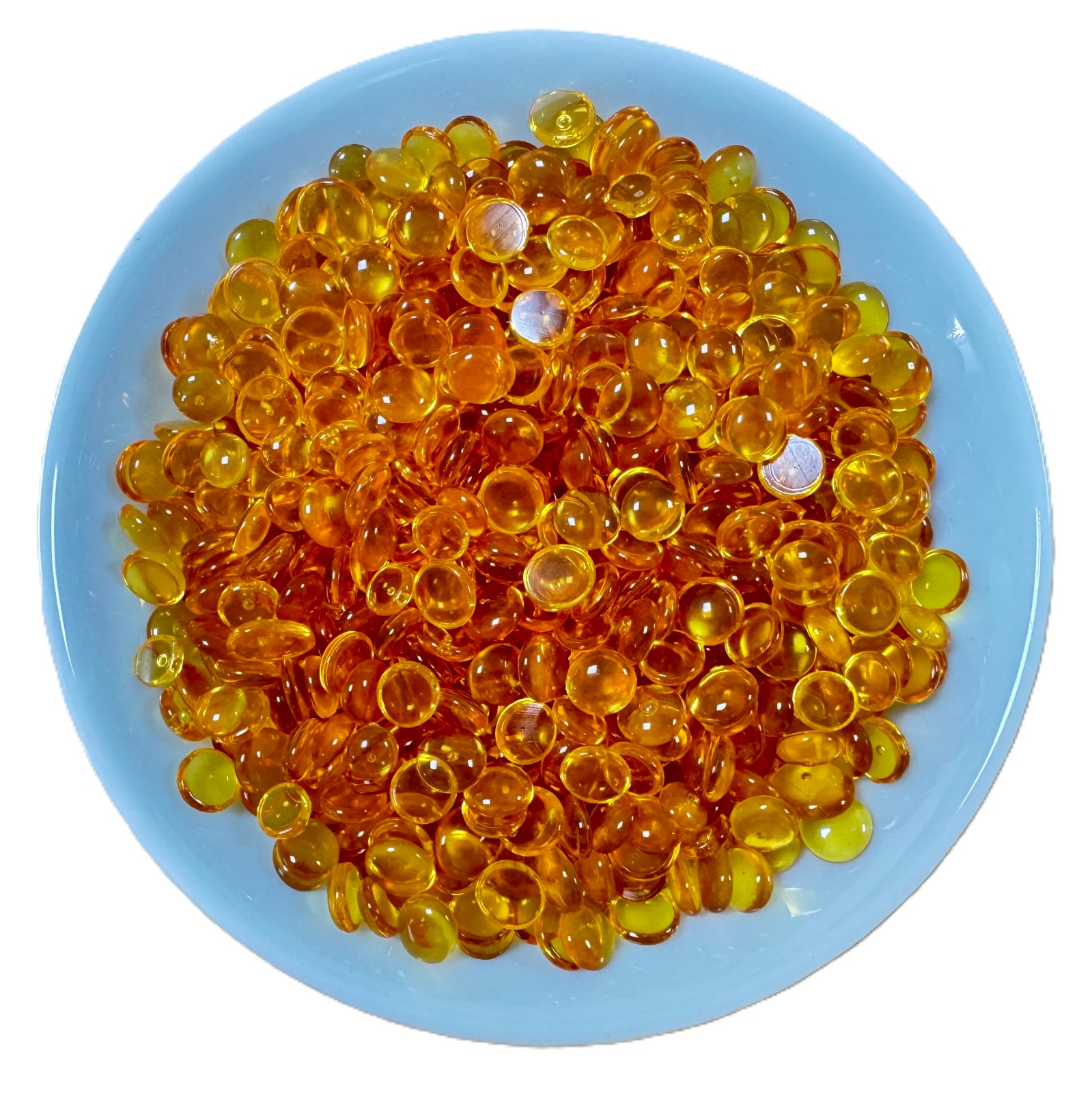

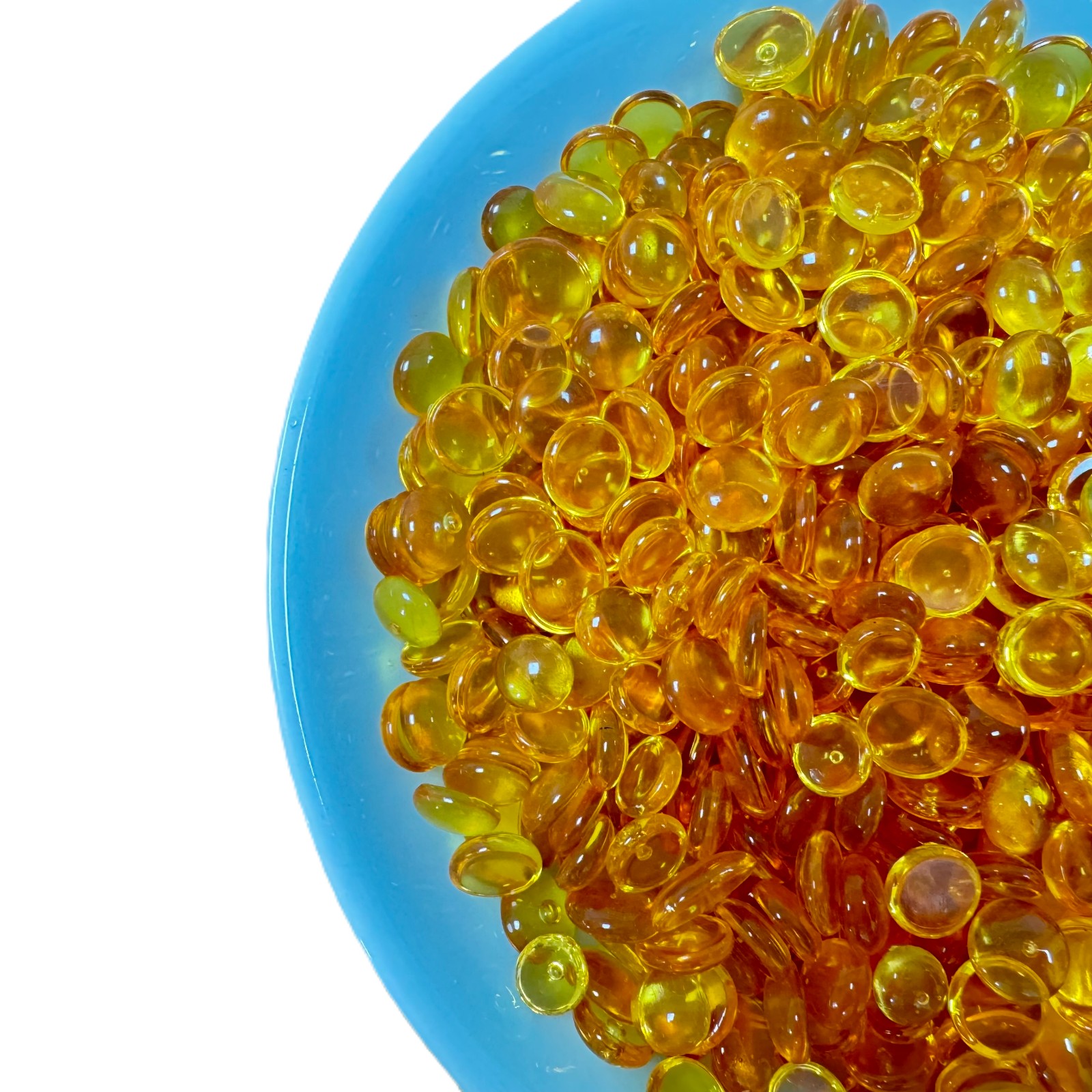

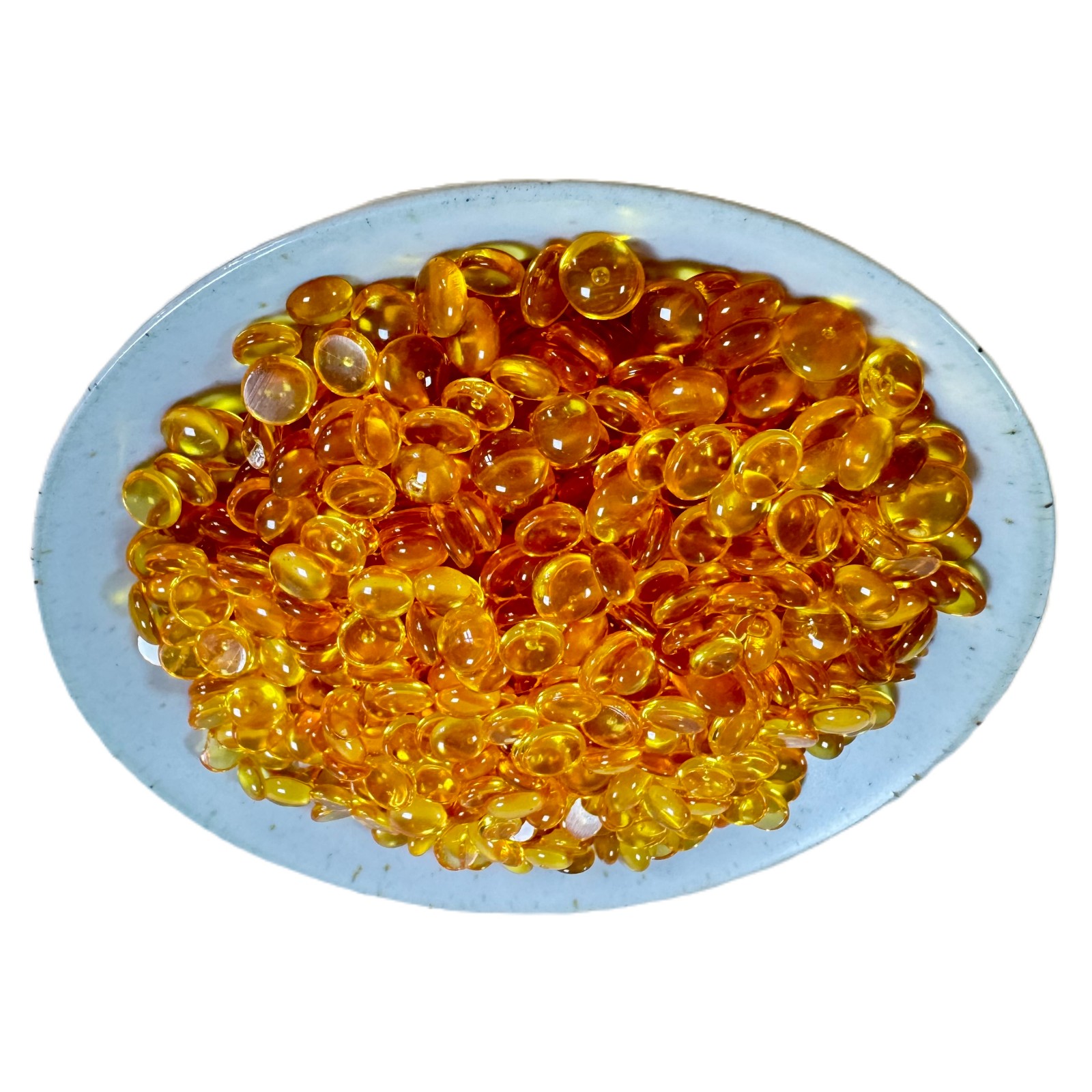

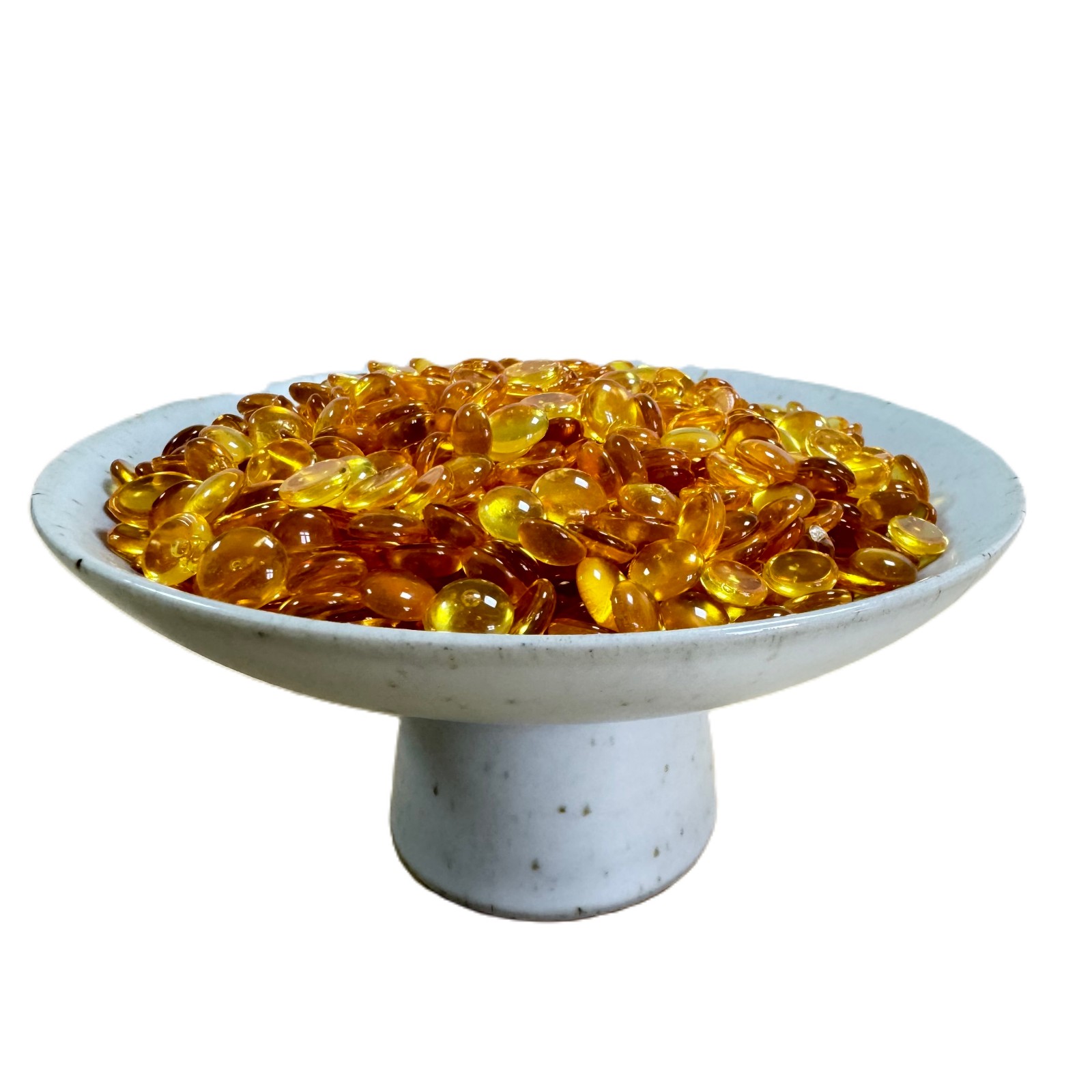

Aspect | Yellow Granular |
Temperature resistance | -20℃ to 110℃ |
Density | 0.98 g/cm3 |
Softening Point | 140+-5℃ |
Viscosity@200℃ @180℃ | 1800-3000 mPa.s 4000-7000 mPa.s |
Tensile strength | 10 MPa min |
Elongation at break | 100% min |
Shore hardness | 23-28D |
Open time (@200℃) | 25 seconds |
Application temperature | 190-210℃ |
Type | PA based |

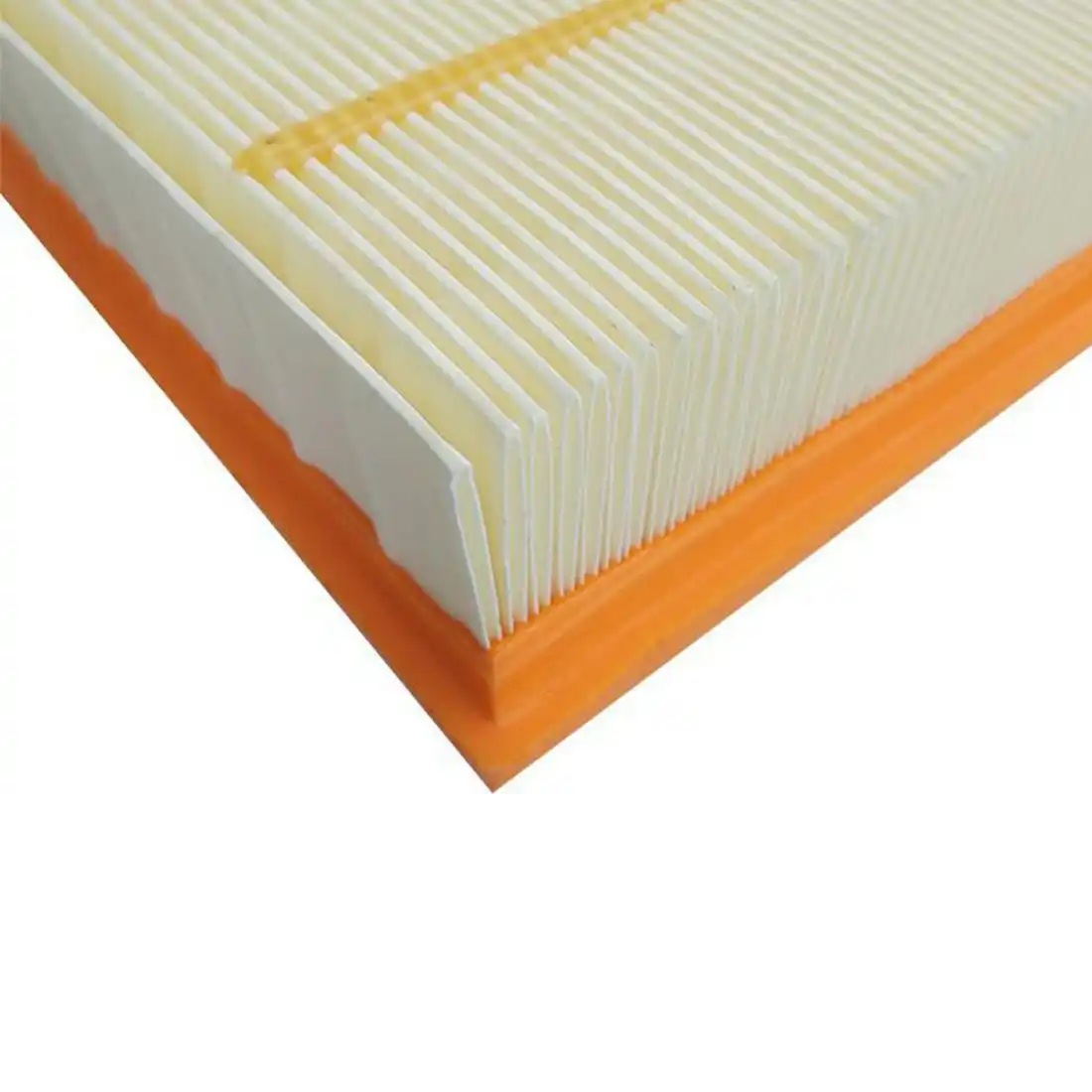

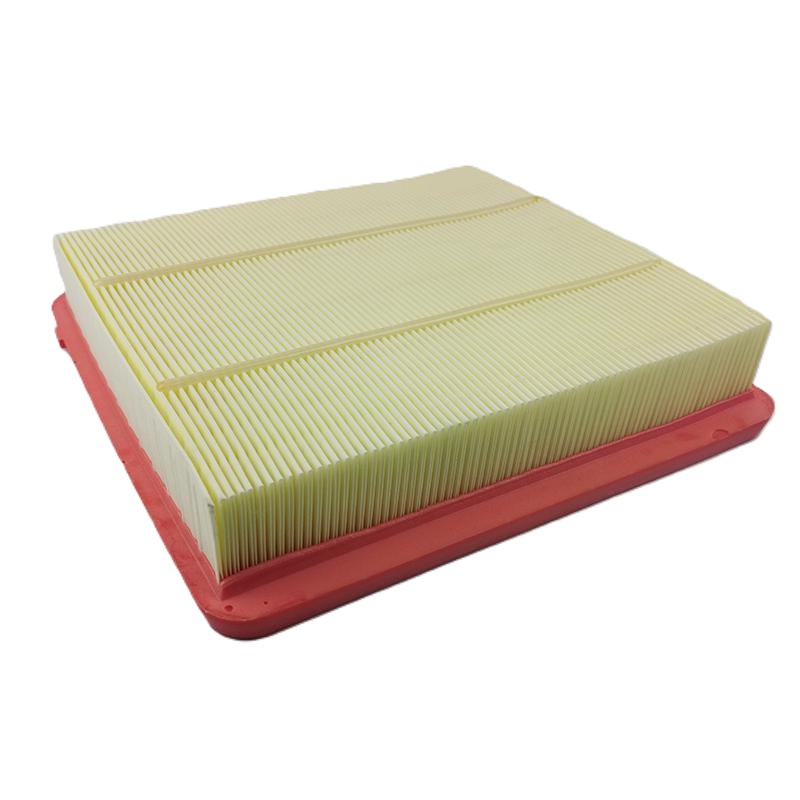

Use: Applied in fields such as automotive component positioning and filter adhesion. Especially for air filter.
Packing: 25Kgs in Kraft bags.
Storage: Indoor, Avoid direct sunlight and moisture.
Shelf Time: 2 years
Application: Please dry it at 85 ℃ in vacuum for 2 hours before use.
